DOC / Loading Platforms

Cantilever
Loading Platforms.

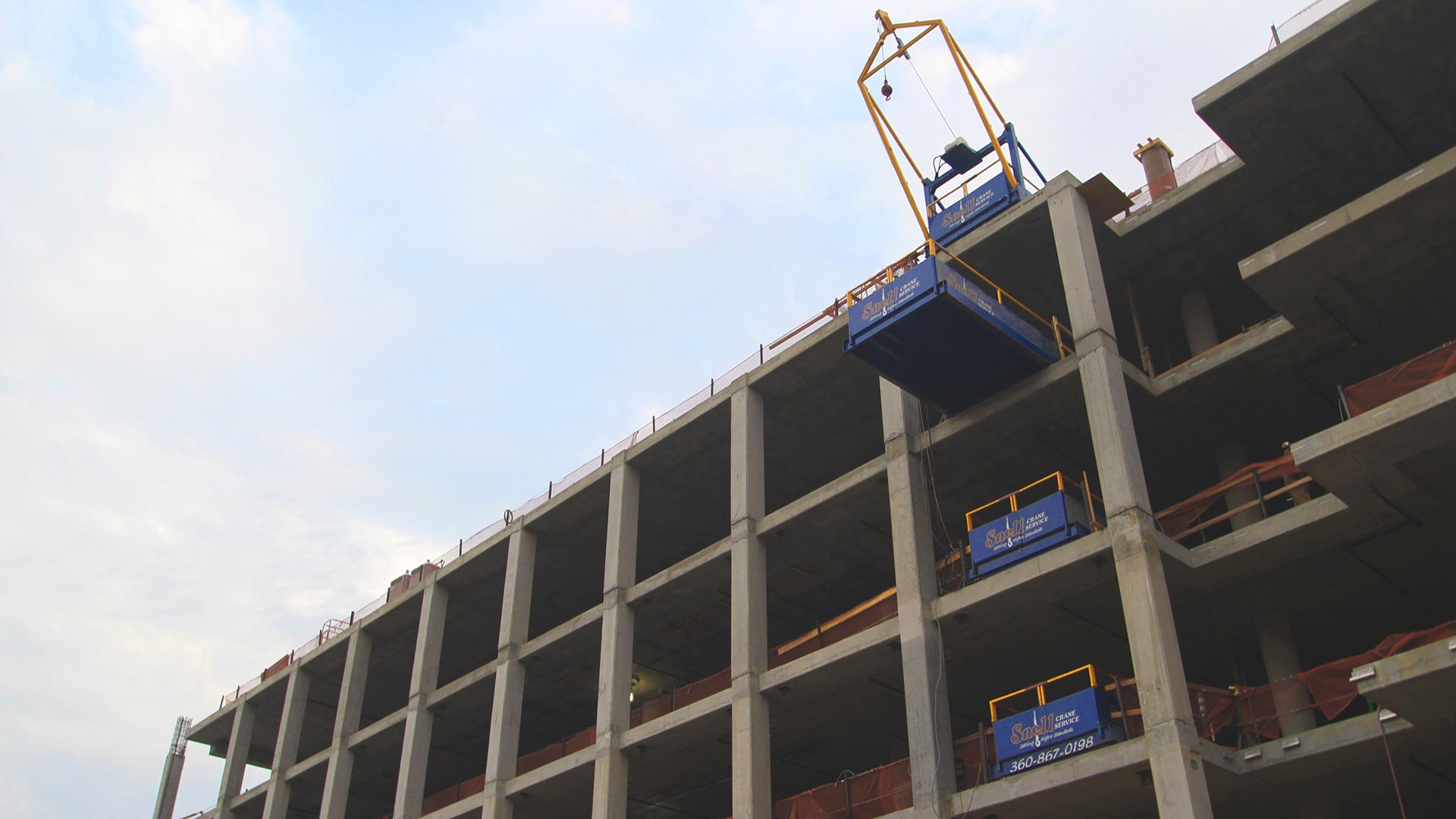

Fully-retractable platforms that deliver large, bulky material straight from truck to floor — without slowing down the elevator.

Load capacity4–5 tons / 8–10K lbs

A drawer for bulky material on any floor.

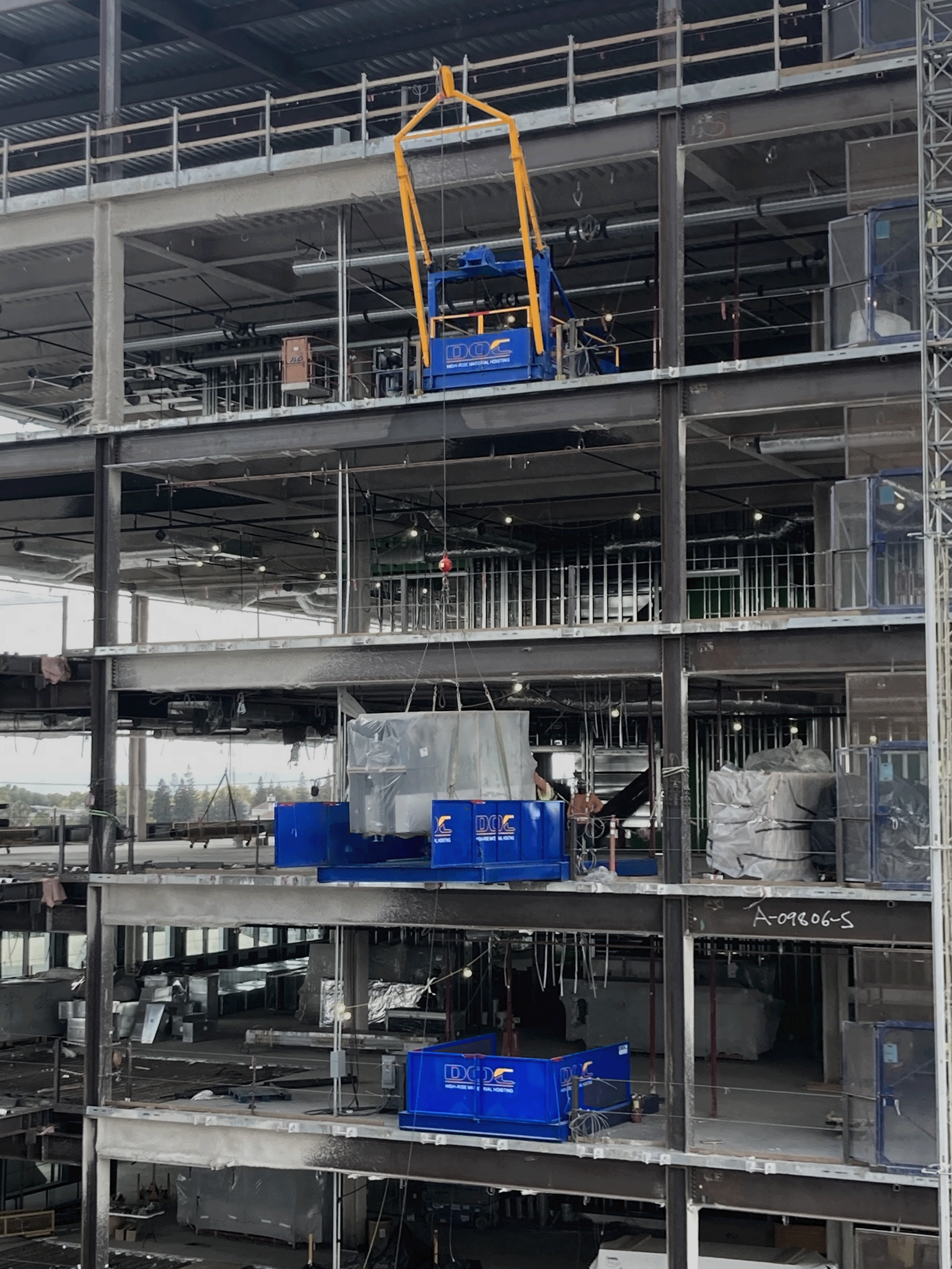

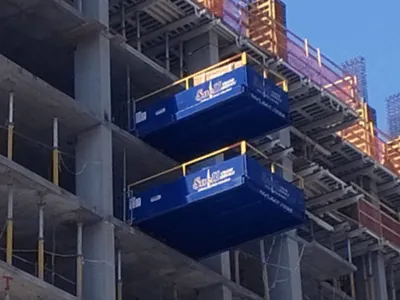

Working like drawers, DOC Loading Platforms give hook access to any floor of a high-rise. Four different models ranging from 4-5 ton capacity, our platforms handle larger, heavier loads than a construction elevator.

They’re the only fully-retractable platforms on the market, and install in almost any concrete or steel-framed building — set up or relocated with a DOC hoist, tower crane or mobile crane in about 10 minutes.

Crews unload with the crane or DOC Material Hoist instead of bogging down the elevator — keeping the whole jobsite moving.

4–5 ton

Load capacity 8-10K lbs

6.5–9 ft

Available widths

10–12 ft

Deck extension

110V

Standard AC outlet

// Available models

Sizes to fit any project.

Model	Width	Max deck ext.	Deck length	Beam length	Max capacity
6.5–12 Loading Deck	6.5 ft	12 ft	14 ft	18 ft	10,000 lb
9.0–10 Loading Deck	9 ft	10 ft	12 ft	14 ft	10,000 lb
9.0–12 Loading Deck	9 ft	12 ft	14 ft	18 ft	8,000 lb

// Cost & safety benefits

Why it earns its spot on the jobsite.

Heavier loads

Handles larger, heavier material than a construction elevator.

No elevator hand-loading

Crews stop hand-loading material off trucks into the elevator.

Less elevator congestion

Frees traffic flow across the site and boosts productivity.

No special training

Adapts into the workforce — no certification to operate.

Safer work area

Material isn’t flying over the entire jobsite.

Faster waste removal

Speeds debris out and keeps waste off the elevator.

Less street congestion

Trucks unload faster, clearing the curb sooner.

Fully retractable

The only retractable deck on the market — pull it back flush when idle.

DOC Loading Platforms have become an essential tool on any high-rise site. With the DOC on site, it’s much easier to stay ahead of schedule and under budget.

— James K. // Project Manager

// New service — fabrication shop

Catalog doesn’t cover it?
We’ll build it.

DOC runs its own steel shop. When a job needs something the standard line doesn’t cover, we engineer, weld and deliver custom material-handling equipment built to your site — the same American steel and certified welds as everything we make.

Designed, welded and
assembled in the USA.

Every system — standard or custom — is fabricated from quality American steel and backed by a US service and support team that knows the equipment.

// Get started

Supercharge your next high-rise Construction Project.

Give us a few details and a DOC rep will help you spec the right system for your project.

Download the DOC brochure

Full product line with engineering specs and load ratings to review with your team. PDF, ready to forward.
