Made in the USA // Loading Decks · Material Hoists · Custom Fabrication(360) 359-7147

High-Rise
Hoisting Systems.

Move material from truck to floor without slowing the tower crane or elevators — and finish the project faster.

DOC Material Hoist with yellow luffing boom, blue base and counterweight
Hoisting capacity8,000 lbs

Keep the tower crane on-task. Finish faster.

Contractors hoist their own material — more than an elevator can move — while the crane stays on structural picks and the elevators stay free for people.

A luffing boom that reaches in and out.

DOC Material Hoists lift 8,000 lbs of bulky material that won’t fit in an elevator. Every hoist is equipped with a luffing boom that reaches outward from the building to take very large loads — like curtainwall, pipe, drywall — straight off the truck.

The luffing boom allows handlers to rotate extra-long material and maneuver it into floors below. Since no special cert is required to operate our hoists, loads that used to require a crane can be unloaded by subs without slowing down the rest of the job site.

DOC luffing hoist boom shown raised, level and lowered, maneuvering long loads like pipe, iron and ducting into inner floors

Loading Decks for large or new construction.

For new construction or buildings where suitable access can be provided, use DOC® Loading Platforms with a DOC Material Hoist installed above to provide hook access to inner floors of a high-rise project.

Each DOC® Loading Deck can be relocated to other floors as the project progresses. Gates open to allow delivery of large bulky objects like pipe, drywall, and curtain wall.

Even though operating the Hoist and Decks is intuitive, we provide hands-on training so you can make the most out of DOC products. Our support staff are also on hand to provide logistics advice and consultation.

  • A stack of DOC Loading Decks installed beneath a DOC Material Hoist, providing a separate material hoisting process to keep the tower crane on task
  • Yellow DOC Material Hoist on an inner floor with blue DOC Loading Decks on the floors below
  • Yellow DOC Material Hoist on an upper floor above a column of blue DOC Loading Decks
  • DOC Material Hoist on an inner floor of a Memphis high-rise, secured with shore posts to the deck above
  • DOC Material Hoist on an inner floor of a concrete high-rise, with Loading Decks and red edge guardrails below

Material Basket for inner floors.

For smaller buildings, remodels or limited exterior access, the Material Basket delivers bulk material to inner floors through a small window opening.

The lightweight hoist mounts on practically any rooftop and speeds delivery of cabinets, plumbing, fixtures and electrical — no structural modifications required.

  • Mobile crane and a DOC Material Hoist with a basket hanging beside a tall building

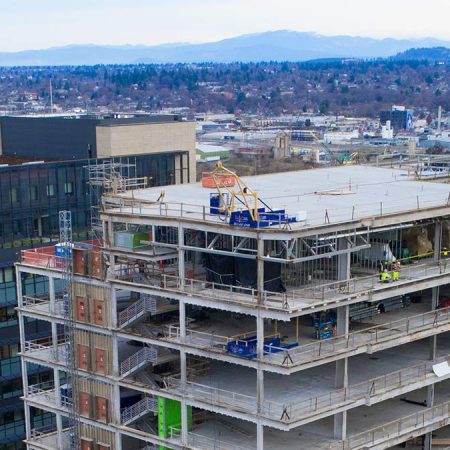

  • DOC Material Hoist on the roof of an 8-story building with a DOC Material Basket attached, delivering to any floor
  • Two workers in hard hats and hi-vis guiding a landed DOC Material Basket with a tag line
  • DOC Material Basket landed in an alley beside a tall building, crew in hi-vis nearby
  • DOC Material Basket lifted to an upper-floor window of a 5-story building by a rooftop hoist
  • DOC Material Hoist on the roof of a 5-story building lowering a basket to a window

DOC Material Hoist videos

Available models

Sizes to fit any project.

DOC Material Hoist and Loading Deck models and dimensions
ModelWidthMax deck ext.Deck lengthBeam lengthMax capacity
6.5 Luffing Hoist w/ Deck6.5 ft12 ft14 ft18 ft8,000 lb
6.5 Luffing Hoist · Modular6.5 ft——18 ft8,000 lb
6.5–12 Loading Deck6.5 ft12 ft14 ft18 ft10,000 lb
9.0–10 Loading Deck9 ft10 ft12 ft14 ft10,000 lb
9.0–12 Loading Deck9 ft12 ft14 ft18 ft8,000 lb

Engineering specs

The numbers for your team.

Max height / cable length
275 ft
Hoist power
480V · 3-phaseFused 100 amp
Deck power
110VStandard AC outlet
Hoist speed
97–205 ft/minLow 97–140 · High 136–205 (by cable layer)
Securing the hoist
Shore post between hoist beams and the floor above; roof installs counterweight the back end. Engineering by GC.
Maintenance
Periodic inspection · daily cable inspection. Cable life by use & wear factor.

Problems it solves

Where projects lose time and money.

  • Tower crane always behind schedule?

    A DOC hoist lets subs unload and deliver their own material without taking picks or valuable time away from the crane.

  • Subs moving material in the elevator?

    When the crane misses a pick, crews jam the elevator. With DOC moving material, elevators move people.

  • Racking up overtime after-hours?

    A separate hoisting line moves material during normal jobsite hours — keeping overtime in check.

  • Tight site, no lay-down area?

    Crews unload straight off the truck — no ground staging, no double-handling.

From the field

DOC on real job sites.

New service — fabrication shop

Catalog doesn’t cover it?
We’ll build it.

DOC runs its own custom steel fabrication shop. We engineer, weld and deliver custom material-handling and crane rigging equipment built to your specification — the same American steel and certified welds as everything we make.

DOC has become an essential tool on any high-rise site. With it on the job, it’s much easier to stay ahead of schedule and under budget.

— James K.  //  Project Manager

Designed, welded and
built in the USA.

Every system — standard or custom — is fabricated from quality American steel and backed by a US service and support team that knows the equipment.

Get started

Supercharge your next high-rise construction project.

Give us a few details and a DOC rep will help you spec the right system for your project.

We use your details only to respond to your request. See our privacy policy.
